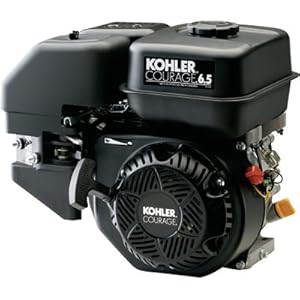

Home » top price » Kohler Courage 6.5 HP Horizontal Engine - 196cc, 3/4in. x 2 7/16in. Shaft, Model# PA-SH265-0011

About Kohler Engine






This Kohler horizontal engine is an excellent choice for log splitters, pressure washers and more. Engine Displacement (cc): 196, Start Type: Recoil, Engine Type: OHV, Rated Power (HP): 6.5, Displacement (cu. in.): 12.7, Fuel Filter: Yes, Fuel Tank: Yes, Fuel Tank Capacity (qt.): 4.3, Mounting Base L x W (in.): 6.378 x 3.149, Mounting Bolt Pattern L x W (in.): 6.378 x 3.149, Bearing Type: Dual ball, Air Cleaner Type: Cyclonic, Bolt Circle (in.): 3.625, EPA/CARB Approval (California Air Resource Board): Yes, Throttle Control: Engine-mounted, Shaft Output: CCW, Shaft Keyway (in.): 3/16, Shaft Rotation (From PTO Shaft Side): CCW, Bore x Stroke (in.): 2.8 x 2.1, Auto Compression Release: Yes, Governor System: Mechanical, Muffler Included: Yes, Shaft Diameter (in.): 3/4, Carburetor: Float w/bowl drain, Cooling System: Air, Ignition System: Electronic, Application: Tiller, log splitter, pressure washer, compressor, cement mixer, tamper, construction equipment, Compression Ratio: 8.5 : 1, PTO Height (in.): 4.173, Choke System: Engine-mounted, Dimensions L x W x H (in.): 12.7 x 14.7 x 14, Torque (ft./lbs.): 9.1, Crankshaft: Hardened, Shaft Length (in.): 2.42, Shaft End Tapped (Diameter (in.)/Threads per inch): 5/16/24, Cylinder Bore: 2.8, Cylinders (qty.): 1, Fuel Type: Gasoline, Low Oil Shutdown: Yes, Oil Capacity (qt.): 0.63, Lubrication System: Splash, Max. RPM: 3,600
read more Details
Large muffler for quiet operation
Large metal fuel tank with metal cap
Low oil alert
Dua

Product Description
This Kohler horizontal engine is an excellent choice for log splitters, pressure washers and more. Engine Displacement (cc): 196, Start Type: Recoil, Engine Type: OHV, Rated Power (HP): 6.5, Displacement (cu. in.): 12.7, Fuel Filter: Yes, Fuel Tank: Yes, Fuel Tank Capacity (qt.): 4.3, Mounting Base L x W (in.): 6.378 x 3.149, Mounting Bolt Pattern L x W (in.): 6.378 x 3.149, Bearing Type: Dual ball, Air Cleaner Type: Cyclonic, Bolt Circle (in.): 3.625, EPA/CARB Approval (California Air Resource Board): Yes, Throttle Control: Engine-mounted, Shaft Output: CCW, Shaft Keyway (in.): 3/16, Shaft Rotation (From PTO Shaft Side): CCW, Bore x Stroke (in.): 2.8 x 2.1, Auto Compression Release: Yes, Governor System: Mechanical, Muffler Included: Yes, Shaft Diameter (in.): 3/4, Carburetor: Float w/bowl drain, Cooling System: Air, Ignition System: Electronic, Application: Tiller, log splitter, pressure washer, compressor, cement mixer, tamper, construction equipment, Compression Ratio: 8.5 : 1, PTO Height (in.): 4.173, Choke System: Engine-mounted, Dimensions L x W x H (in.): 12.7 x 14.7 x 14, Torque (ft./lbs.): 9.1, Crankshaft: Hardened, Shaft Length (in.): 2.42, Shaft End Tapped (Diameter (in.)/Threads per inch): 5/16/24, Cylinder Bore: 2.8, Cylinders (qty.): 1, Fuel Type: Gasoline, Low Oil Shutdown: Yes, Oil Capacity (qt.): 0.63, Lubrication System: Splash, Max. RPM: 3,600

This Kohler horizontal engine is an excellent choice for log splitters, pressure washers and more. Engine Displacement (cc): 196, Start Type: Recoil, Engine Type: OHV, Rated Power (HP): 6.5, Displacement (cu. in.): 12.7, Fuel Filter: Yes, Fuel Tank: Yes, Fuel Tank Capacity (qt.): 4.3, Mounting Base L x W (in.): 6.378 x 3.149, Mounting Bolt Pattern L x W (in.): 6.378 x 3.149, Bearing Type: Dual ball, Air Cleaner Type: Cyclonic, Bolt Circle (in.): 3.625, EPA/CARB Approval (California Air Resource Board): Yes, Throttle Control: Engine-mounted, Shaft Output: CCW, Shaft Keyway (in.): 3/16, Shaft Rotation (From PTO Shaft Side): CCW, Bore x Stroke (in.): 2.8 x 2.1, Auto Compression Release: Yes, Governor System: Mechanical, Muffler Included: Yes, Shaft Diameter (in.): 3/4, Carburetor: Float w/bowl drain, Cooling System: Air, Ignition System: Electronic, Application: Tiller, log splitter, pressure washer, compressor, cement mixer, tamper, construction equipment, Compression Ratio: 8.5 : 1, PTO Height (in.): 4.173, Choke System: Engine-mounted, Dimensions L x W x H (in.): 12.7 x 14.7 x 14, Torque (ft./lbs.): 9.1, Crankshaft: Hardened, Shaft Length (in.): 2.42, Shaft End Tapped (Diameter (in.)/Threads per inch): 5/16/24, Cylinder Bore: 2.8, Cylinders (qty.): 1, Fuel Type: Gasoline, Low Oil Shutdown: Yes, Oil Capacity (qt.): 0.63, Lubrication System: Splash, Max. RPM: 3,600
